Production Fixture

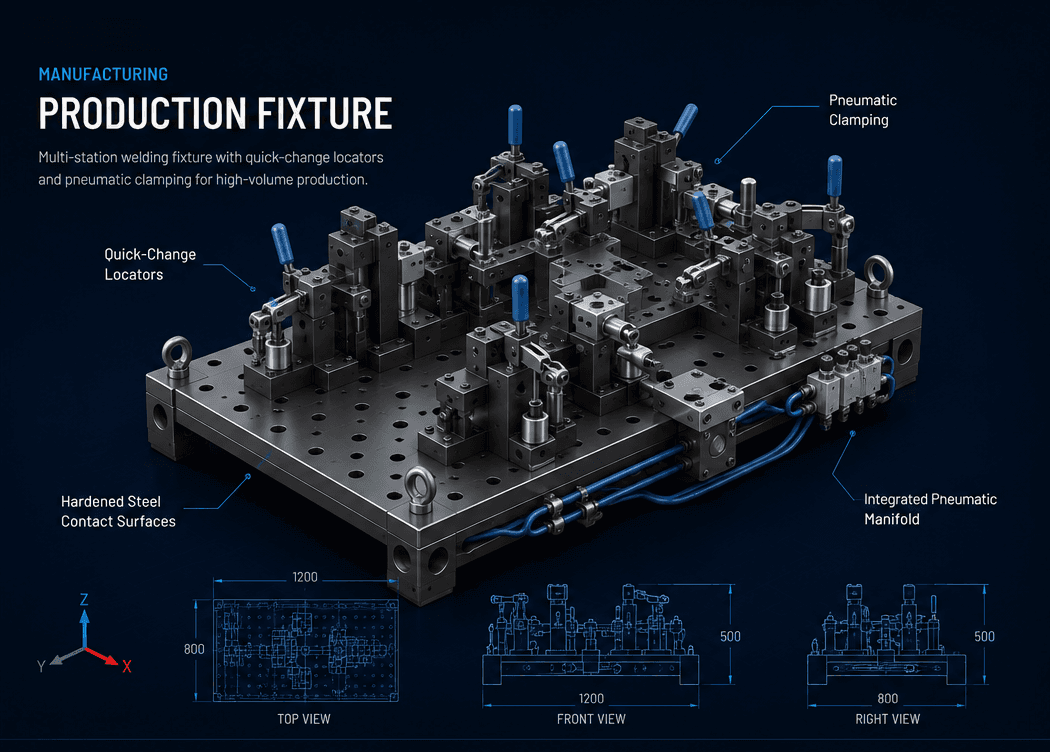

Multi-station welding fixture with quick-change locators and pneumatic clamping for high-volume production.
Back to Portfolio
The Challenge
Design a production fixture that ensures repeatable positioning across 50,000+ cycles with minimal maintenance.
Our Solution
Developed a hardened steel locator system with pneumatic clamping sequence and wear-resistant contact surfaces.
Results
- ±0.02mm repeatability achieved
- 50,000+ cycle durability validated
- Setup time reduced by 60%
Project Details
- Client
- Auto Components Inc.
- Year
- 2024
- Category
- Manufacturing
- Services
- Assembly DesignDesign for ManufacturingEngineering Documentation
