Hydraulic Press

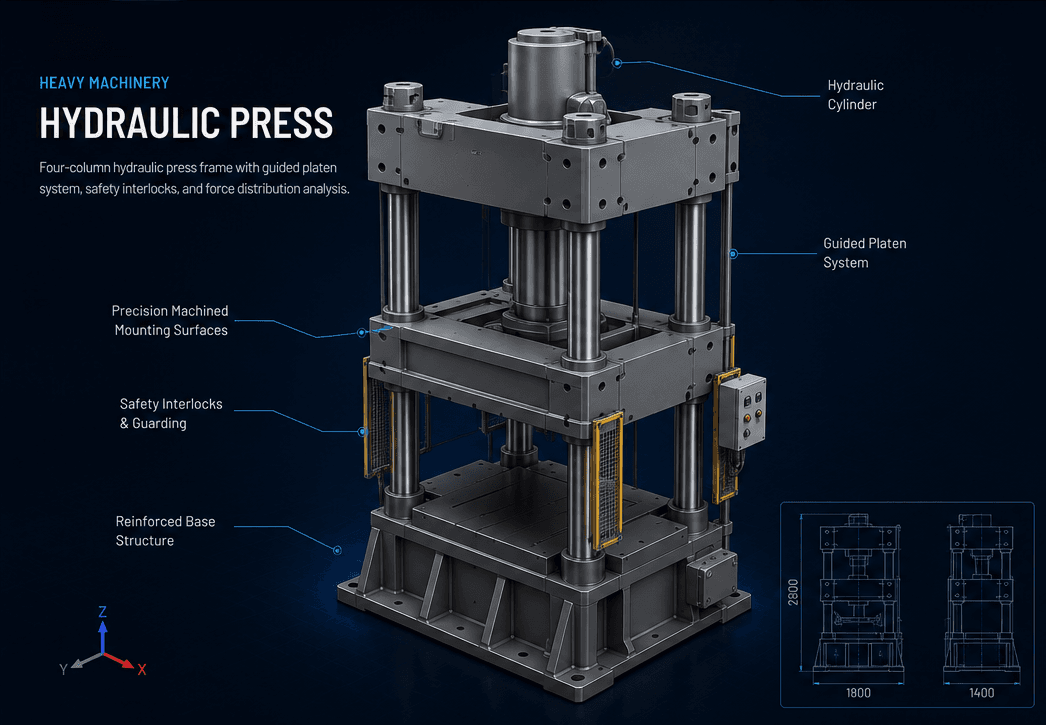

Four-column hydraulic press frame with guided platen system, safety interlocks, and force distribution analysis.
Back to Portfolio
The Challenge
Engineer a 500-ton press frame with uniform force distribution and minimal deflection under maximum load conditions.
Our Solution
Performed FEA-guided structural design with optimized column sizing and guided platen alignment system for repeatable precision.
Results
- Deflection under 0.1mm at full load
- Complete FEA validation report
- Manufacturing-ready drawing set
Project Details
- Client
- Industrial Press Systems
- Year
- 2024
- Category
- Heavy Machinery
- Services
- Mechanical CAD DesignEngineering ConsultancyManufacturing Drawings
