Industrial Automation

Conveyor System

Modular belt conveyor system with adjustable frame, drive assembly, and safety guard integration for packaging lines.

Back to Portfolio

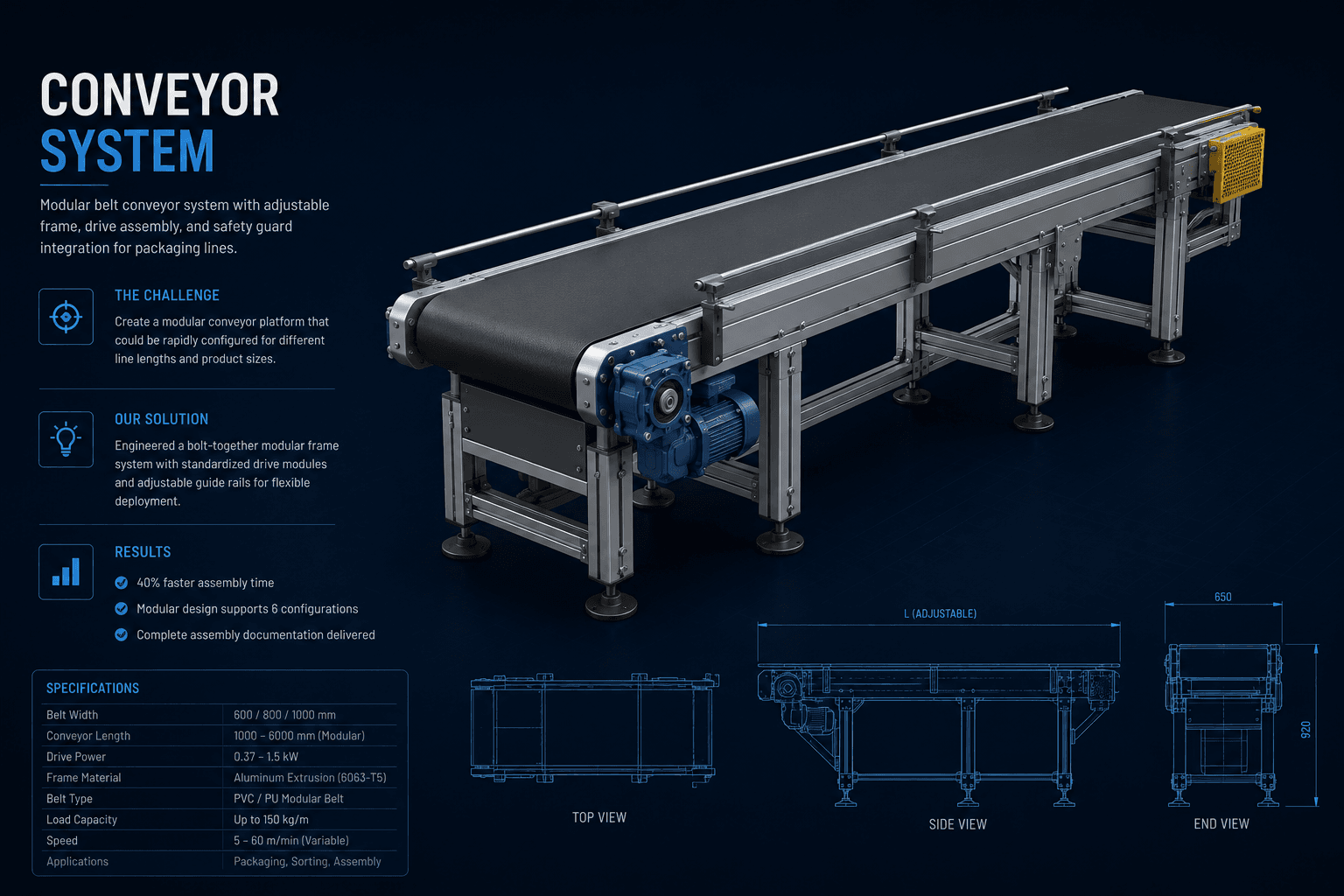

CONVEYOR SYSTEM — RENDER

The Challenge

Create a modular conveyor platform that could be rapidly configured for different line lengths and product sizes.

Our Solution

Engineered a bolt-together modular frame system with standardized drive modules and adjustable guide rails for flexible deployment.

Results

  • 40% faster assembly time
  • Modular design supports 6 configurations
  • Complete assembly documentation delivered

Project Details

Client
Packaging Solutions Ltd.
Year
2025
Category
Industrial Automation
Services
Assembly Design3D Product DesignEngineering Documentation
